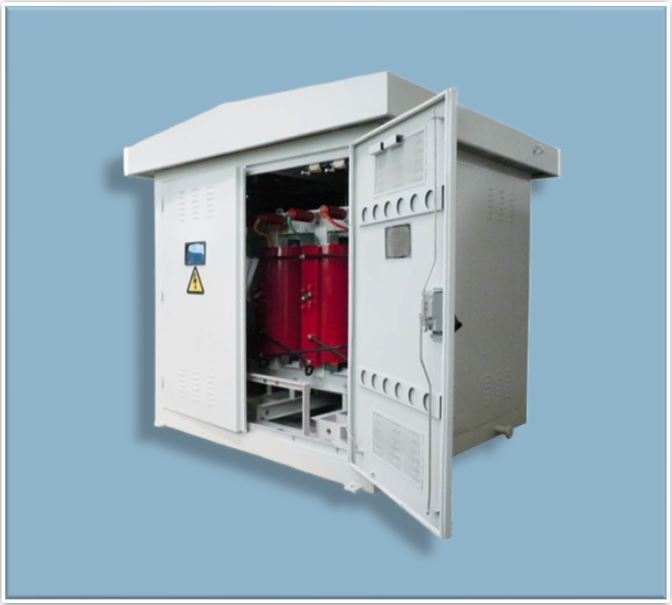

Our Package Substation are manufactured with a standard rating and customer requirements. All Package Substations are designed for continuous operation with maximum efficiency to confirming IS 1180 standards.
We manufactures various modules of indoor/outdoor type Compact Sub-Stations up to 2500 KVA capacity, 33KV class of Transformers with HT/LT switch gear. The Compact Sub-Station (CSS) is also known as Unitized Sub-Station (USS) or Packaged Sub-Station (PSS). The Compact Sub-Station is a compact arrangement, which replaces conventional sub-station arrangement consisting of load break switch / vacuum circuit breaker, transformer, distribution panel, lightening arresters mounted on a pole structure or on a platform.
🔹Features:
- Fully compartmentalized design
- Easy to install, operate & require very less maintenance
- Cost effective & space saving
- Reduced electrical losses as CSS can be installed near the load center
- A high degree of safety & operational reliability is achieved
- Reduction in Logistic Cost as the CSS is delivered as a single unit
- Tailored configuration to meet customer requirement
🔹 Main Components:
- Transformers → change voltage levels
- Circuit Breakers → protect against faults
- Isolators (Disconnectors) → isolate equipment for maintenance
- Busbars → distribute power within the substation
- Relays → detect faults and trigger protection
- Lightning Arresters → protect from surges
🔹 Types of Substations:
- Step-up Substation → increases voltage (near power plants)
- Step-down Substation → decreases voltage (near consumers)
- Distribution Substation → supplies power locally
- Indoor Substation → equipment installed inside buildings
- Outdoor Substation → open-air installation
🔹 Applications:
- Power generation stations
- Transmission networks
- Industrial and urban power distribution
Feel free to contact us for your requirements.
